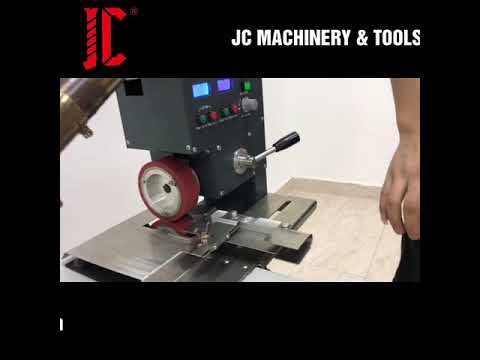

JC-3600-TM Table – Mounted Hot Air Welder

• Simple installation, can be mounted onto nearly any table.

• User friendly operating system.

• Welding speeds of up to 12 m (39 ft.)/min.

• One hem guide – four applications, Hems: 20/30/40 mm (0.8/1.2/1.6 inches); Pole pockets: Up to 180 mm (7 inches); Hems with rope and Lap welding.

• Perfect design for heat-seaming of banner, tarpaulin and tents.

• It can be applied on wide range of applications such as connecting keders, grommet hems, welding pocket and overlapping.



















Category:



1. Intelligent control system, easy to operate



2. Adjustable pressure wheel.



3. Convenient for customers use, use ruler to location.



4. Can be mounted onto nearly any table, freely-adjustable, quick-clamp lock



Model JC-3600-TM
Voltage AC220V 50HZ
Power 3600W
Heat Temperature 50-620℃ (122- 1148 °F) Adjustable
Air Flow 70%-100% Adjustable
Welding Speed 12 m (39 ft.)/min
Overlap Width 1-43 cm (0.4-17 inches)
Open Welding Width 180 cm (71 inches) (welding width + opening width)
Nozzle Width 20/30/40 mm (0.8/1.2/1.6 inches)
Dimensions (L x W x H) 350 x 350 x 560 mm (13.8 x 13.8 x 22 inches)
Net Weight 20 kg (44 lbs) Including supporting frame
