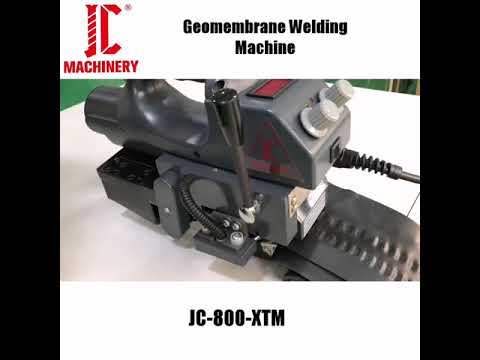

JC-800-XTM Geomembrane Wedge Welder

HDPE Geomembrane Wedge Welding Machine

Geomembrane Welding Machine hot wedge welder for welding HDPE, LDPE, EVA, PVC, ECB, PP thermo plastic materials, which used in waterproofing projects like tunnels, subway, water conservancy, framing, solid waster landfills, chemical mining industry, sewage treatment, roofing and so on.






Description

HDPE Geomembrane welding machine is one of our newly developed product.

It can weld geo-membrane of various thicknesses.

Applicable for welding of all thermal-fused material. Such as LDPE, PVC, HDPE, EVA, PP and so on.

The control of this series of welding machine adopts PID automatic thermostatic control with high control accuracy and low-temperature fluctuation.

Speed control adopts PWM automatic voltage and speed regulation circuit, driven by DC servo motor, with great output torque and the operating is stable.

It can maintain a constant speed on the condition of creeping, vertical creeping and variable road load.

This series of welding machine is stable in performance despite of external temperature and voltage variation. Also  excellent in performance and easy for operating with high welding speed and good work quality

Extensively used in engineering projects such as

  • Expressways
  • Tunnels
  • Reservoirs
  • Waterproof
  • Construction & so on.

hdpe geomembrane



Technical Parameters
Technical Parameters
Voltage120V
Frequency50Hz
Power800W
Welding speed0.5-5m/min
Heating temperature0-450℃ (32-842℉)
Thickness of material to be welded0.2-1.5mm
Overlap width100mm
Welding width12.5mm×2, interior cavity
Seam strength≥85% base material (tensile resistant in shear direction), complete machine
complete machine
DimensionsL32 x W15 x H22cm
Weight5kg
