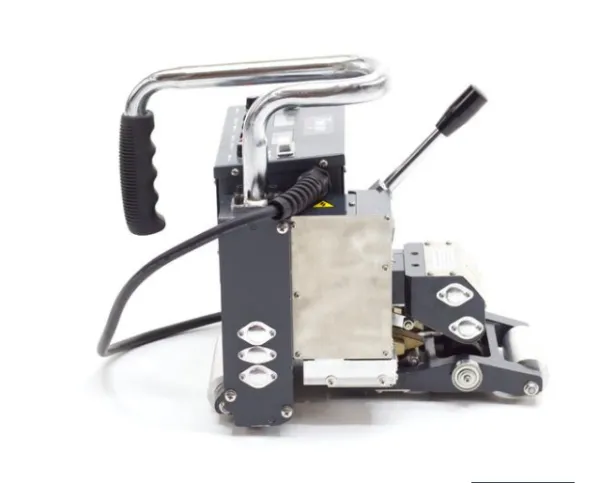

Geomembrane Wedge Welder JC-1800-DTM 3Geomembrane Wedge Welder JC-1800-DTM 2

Geomembrane Wedge Welder JC-1800-DTM

It adopts advanced hot wedge structure, With its high power, high speed and pressure.

• Welds 1.0mm – 3mm thickness of Hot Melting Materials
• Such as HDPE, LDPE, PVC, EVA, ECB, PP and others

This Machine is specially designed for

✔️ Water conservancy
✔️ Aquaculture
✔️ Landfills
✔️ Chemical mining
✔️ Sewage treatment
✔️ Roof constructions
✔️ Waterproofing projects



Download to view user manuals below







Category:

Description

Geomembrane wedge welder is a new welding machine which is developed by our company.

They can weld geo-membrane of various thickness and are applicable for welding of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP and PVC、HDPE、EVA、PP.

The control of this series adopts PID automatic thermostatic control with high control and low temperature fluctuation.

Speed control of this series adopts PWM automatic voltage and regulation speed circuit. Direct current servo the motor drive with great output torque and staple performance in walking.

It can maintain a constant speed on the condition of creeping, vertical creeping and road load. Also this series of welding machine is stable in performance despite of external temperature and voltage variation.

This series of Geomembrane Wedge Welder is excellent in performance and easy for operating, with high welding speed and good work quality.

It is extensively used in engineering projects such as expressways, tunnels, reservoirs, waterproof of construction and so on.



Geomembrane Wedge Welder JC-1800-DTM 16

Technical Parameters

Output Voltage 220 V
Frequency 50 Hz
Power 1800 W
Welding speed 0.5~5 m/min
The temperature of Heating up 0~450℃ (32-842℉)
The thickness of welding material 1.0~3.0(Single membrane thickness) mm
Welding width 14×2 mm
Interior Cavity 16 mm
Welding intention≥85% Maternity material(Resistance to the direction of cutting)
Joint width 120 mm
Machine body weight 13 kg
